This article is about the junction connecting Nexus infrastructure and Network Rail infrastructure. It is not to be confused with any of the adjacent junctions with a similar name, those being the mainline-only Pelaw Junction and the Nexus-only Pelaw North Junction and Pelaw South Junction. For more information on the differences, see the naming and disambiguation section.

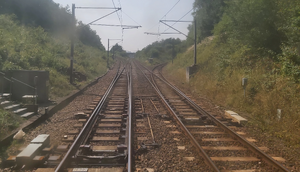

Dual track, with another track leading onto the main track on the right, and another track branching from the track on the left
Pelaw Metro Junction, viewed from the front of a metrocar approaching the down chord

Pelaw (Metro) Junction ( PJC, PELAWMJ) refers to two chords of the Tyne and Wear Metro network connecting Nexus infrastructure to Network Rail infrastructure (the South Hylton branch of the Green Line)[1].

Chord 1 (the "up" chord) is used for trains travelling from Pelaw Platform 1 to Fellgate Platform 1, and chord 2 (the "down" chord) is used for trains travelling from Fellgate Platform 2 to Pelaw Platform 2.

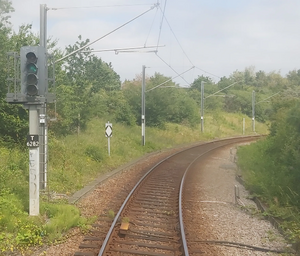

A downhill and curved track, with a 4-aspect signal alongside it labelled T6282 and displaying a green (proceed) aspect, with a radio changeover board behind it
View out of the front of a metrocar on the up chord, about to proceed through signal T6282 and enter Network Rail infrastructure

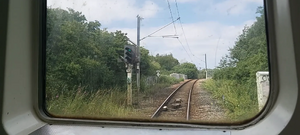

An uphill and slightly curved track with a 3-aspect signal alongside it labelled 764 and showing a green (proceed) aspect, with a radio changeover board behind it, seen through a white window frame
View out of the front of a metrocar on the down chord, about to proceed through signal 764 and return to Nexus infrastructure

The exact boundary between the two infrastructures is at Network Rail signal T6282 for the up chord[2] and Metro signal 764 for the down chord.[3] Drivers must changeover their radios when passing these signals, from Metro Control to Tyneside ROC and vice versa.

Loading map...

It is the only location other than a station to show as a "Last seen" status in the Pop app, where it shows as "Pelaw Junction Platform 1" regardless of which chord the train is using.[OR]

Naming and disambiguation

[edit | edit source]

In the context of the Tyne and Wear Metro, Pelaw Junction (and its three-letter code, PJC) typically refers only to the two chords with TIPLOC PELAWMJ[4]. However, it can also refer to three other junctions, which have been included in the map above.

In the context of the national network, Pelaw Junction typically refers to the junction with TIPLOC PELAW[5] where mainline trains from Heworth mainline station branch towards Fellgate, the Jarrow Branch, or formerly the Leamside Line.

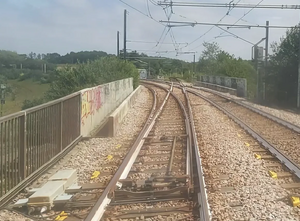

A curved dual track on a bridge, with a single track branching from the left track and crossing over the right track
Pelaw North Junction, viewed from the front of a metrocar about to enter the up chord

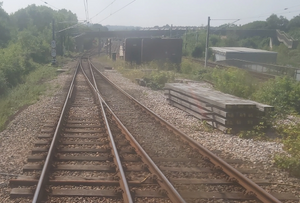

Two tracks meeting together
Pelaw South Junction, viewed from the front of a metrocar approaching the junction from the down chord

Pelaw Junction can sometimes also refer to Pelaw North Junction[6] or Pelaw South Junction. Metro trains travelling from Pelaw to Fellgate pass through Pelaw North Junction and chord 1 of Pelaw Junction. Metro trains travelling from Pelaw to Hebburn only pass through Pelaw North Junction. Trains travelling from Fellgate to Pelaw pass through chord 2 of Pelaw Junction and Pelaw South Junction. Metro trains travelling from Hebburn to Pelaw only pass through Pelaw South Junction.
